Asus prime b650-plus

Asus prime b650-plus

Motherboard

R 2,600.00
In Stock(1 available)
Condition: Refurbished - Good
Warranty: 3 Months

AMD AM5 socket, B650 chipset, DDR5 support up to 7600MHz+, PCIe 5.0 M.2, 2.5Gb LAN, and USB 3.2 Gen 2x2 Type-C — engineered for high-performance Ryzen 7000/8000/9000 builds.

Product Details

Overview

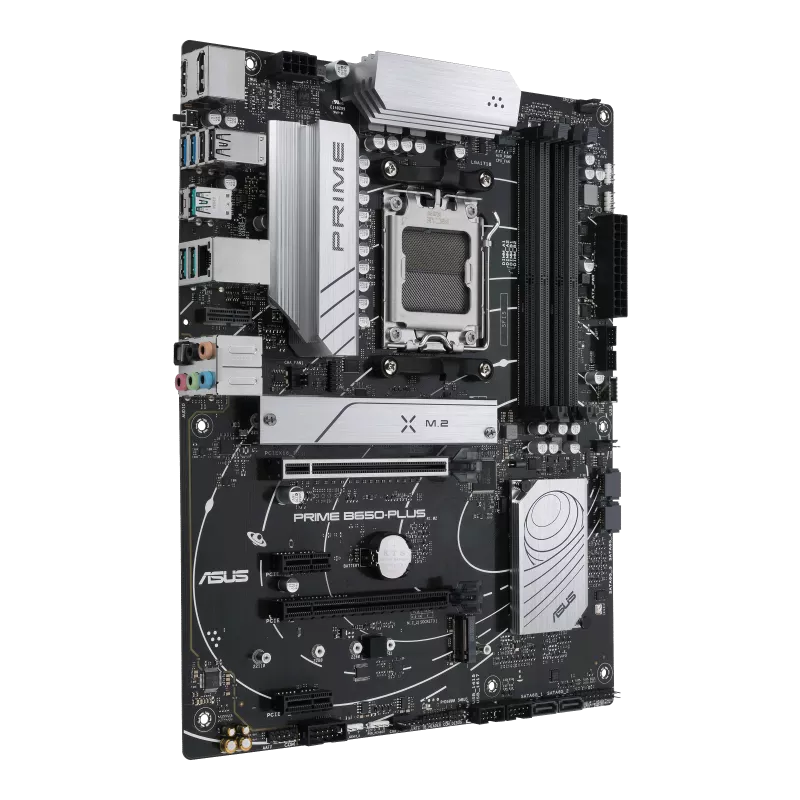

The ASUS Prime B650-Plus is an ATX motherboard meticulously engineered to unlock the full potential of AMD Ryzen™ 7000, 8000, and 9000 series desktop processors. Built on the modern AMD AM5 socket, it features a robust power design, comprehensive cooling solutions, and intelligent tuning options that give daily users and DIY PC builders a well-rounded platform for productivity, content creation, and high-framerate gaming.

Constructed with a high-density 6-layer PCB and high-end thermal pads, the Prime B650-Plus balances minimalist aesthetic design with industrial durability. Integrated ASUS OptiMem II technology enhances memory trace routing, significantly reducing crosstalk and jitter to push DDR5 memory performance to its absolute limits.

Architecture & Performance

Powered by the AMD B650 chipset and Zen 4 / Zen 5 architecture compatibility, the ASUS Prime B650-Plus provides next-generation throughput and efficiency. Featuring an 8+1 DrMOS power stage VRM design coupled with ProCool solid-pin power connectors, this motherboard guarantees stable power delivery even under heavy multithreaded workloads like 4K video rendering and 3D compiling.

Storage bandwidth is maximized via a primary M.2 slot operating on PCIe Gen 5.0 x4, delivering blistering sequential transfer speeds exceeding 10,000 MB/s with compatible NVMe SSDs. A secondary PCIe 4.0 x4 M.2 slot alongside a reinforced PCIe 4.0 x16 SafeSlot Core+ expansion slot ensures your system is equipped for power-hungry GPUs like the NVIDIA RTX 40-series or AMD RX 7000-series. Equipped with Realtek 2.5Gb Ethernet and USB 3.2 Gen 2x2 Type-C (20Gbps), network latency is minimized and peripheral transfer rates are maximized.

Key Technical Specifications

  • CPU Socket & Chipset: AMD Socket AM5 supporting AMD Ryzen™ 9000 / 8000 / 7000 Series Processors; AMD B650 Chipset.
  • Memory Support: 4x DDR5 DIMM slots (up to 192GB max capacity), Dual-Channel architecture, supports DDR5 7600+(OC) with AMD EXPO™ profiles and ASUS OptiMem II.
  • Storage Interfaces: 1x M.2 PCIe 5.0 x4 slot, 1x M.2 PCIe 4.0 x4 slot, and 4x SATA 6Gb/s ports (RAID 0/1/10 support).
  • Expansion Slots: 1x PCIe 4.0 x16 (x16 mode with SafeSlot Core+), 1x PCIe 4.0 x16 (x4 mode), 2x PCIe 4.0 x1 slots.
  • Power & Thermals: 8+1 DrMOS power stages, VRM heatsinks with high-conductivity thermal pads, M.2 heatsink, Fan Xpert 2+ control, and Digi+ VRM voltage regulator module.
  • I/O & Connectivity: Realtek 2.5Gb Ethernet, Rear USB 3.2 Gen 2x2 Type-C (20Gbps), USB 3.2 Gen 2 Type-A (10Gbps), DisplayPort 1.4, HDMI 2.1, and BIOS FlashBack™ button.

Who It's Built For

The ASUS Prime B650-Plus is built for mainstream PC builders, gamers, and productivity power users who demand the future-proof features of AMD's AM5 platform—including DDR5 and PCIe 5.0 SSD performance—without paying a premium for unnecessary enthusiast extras. It is the ideal foundation for reliable 1440p gaming builds, content creation workstations, and scalable multi-tasking desktop rigs.
